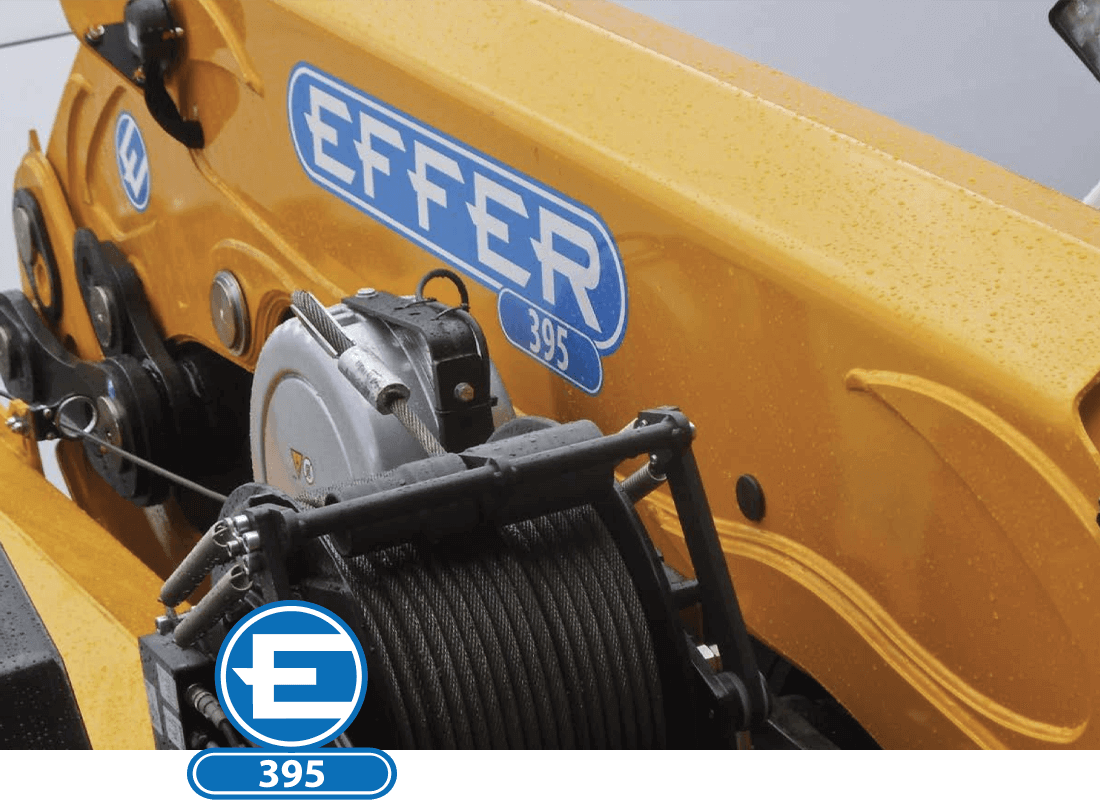

The 395 crane represents an optimal compromise between lifting capacity and dimensions, since it has been designed to have an extremely reduced space behind the cab and very low weight. These results have been obtained thanks to an innovative design and the careful selection of components. The reliable PROGRESS electronics has also made it possible to reach a remarkable manoeuvrability, granting all the highest safety standards.
| DESCRIPTION | UNIT OF MEASURE | 6S |
|---|---|---|
|

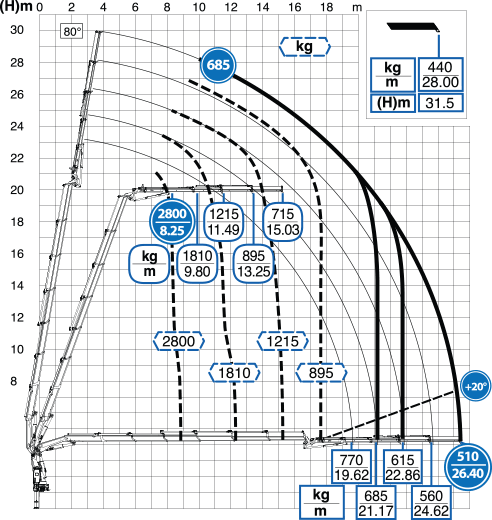

Max. Hydraulic Outreach |
m |
14,73 |
|
Max. Lifting Moment (+20°) |
kgm |
33760 |
|
|
kNm |
331 |
|
Slewing Arc |
(°) |
endless |
|
Slewing Capacity – Max Slope |
% |
8,7 |
|
Working pressure |
bar |
355 |
|
Recommended Oil Delivery |
l/min |
100 |
|
Oil Tank Capacity |
l |
160 |
|
Weight of the Standard Crane (± 2%) |
kg |
4270 |
